Product
　　
Module
Security module using RoT chip
Wi-Fi Module


▪
Secure IoT Module with WiFi / BLE
▪
2.4GHz / UART, I2C, PWM, ADC, GPIO
▪
27mm * 20mm * 24mm / 20 pin
▪

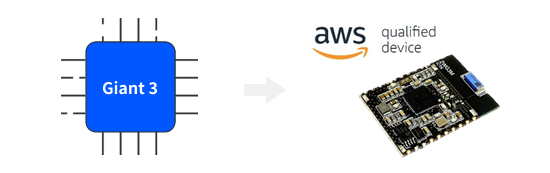

AWS IoT Core Certified in mid-February

Wi Fi Specification


  • IEEE 802.11 b/g/n (2.4GHz, 1x1)
  • Supports 20MHz channels
  • Wi Fi security WEP , WPA2 and WPS
  • Integrated 2.4GHz PA/LNA and RF switch

Bluetooth Low Energy


  • Bluetooth 4.2 Low Energy

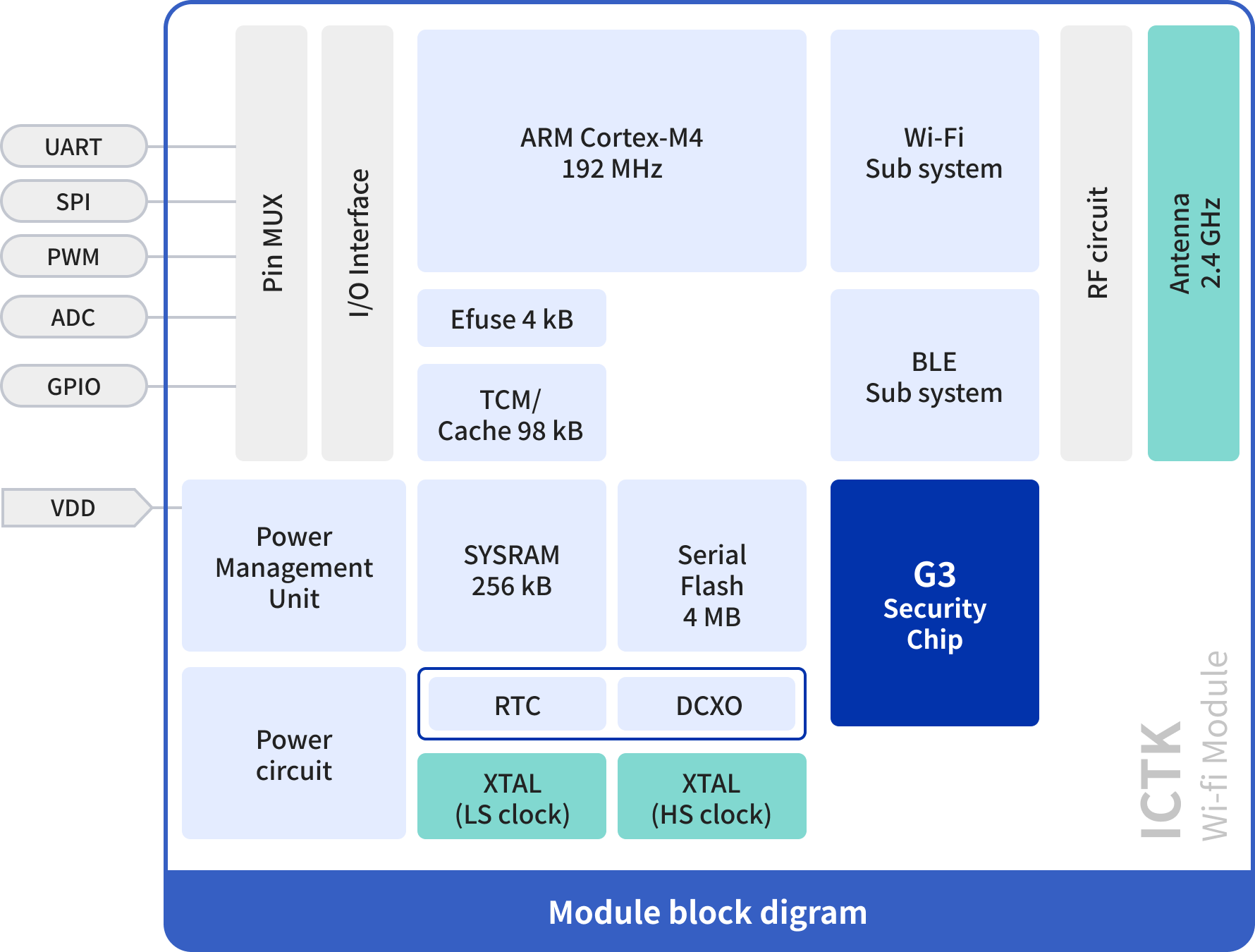

 Platform


  • 192MHz ARM Cortex-M4 with FPU
  • Embedded 352 kB SRAM

Wi Fi Specification


  • Integrated 2.4GHz Antenna
  • Interfaces: UART, SPI, PWM, ADC, GPIO
  • Wi Fi security WEP , WPA2 and WPS
  • 26MHz crystal oscillator / 32KHz crystal
    oscillator for RTC



  • Size: 32 mm x 20 mm x 3.4 mm, 26-Pin
  • Operating temperature range : -30 ~ 85
  • Integrated PUF based security chip for
     secure authentication
  • IoT (Internet of Things)
  • Security/Access Control
  • Home Appliances
  • Smart Energy
  • Sensor Networks
